An elegant and very complete product conceived to push to the limits the possibilities of the most advanced Hi-Res of the moment, using a series of engineering concepts imported from the renowned amplifiers of Musical Fidelity.
The first of these that deserves mention is a Class A analogue amplifier stage executed with discrete components, in order to achieve an extremely pure, warm and detailed sound.
On the other hand, the new Musical Fidelity has no display screens (to avoid unwanted electromagnetic interference) and no Wi-Fi or Bluetooth connectivity (in this case to minimise radio frequency radiation and jitter).

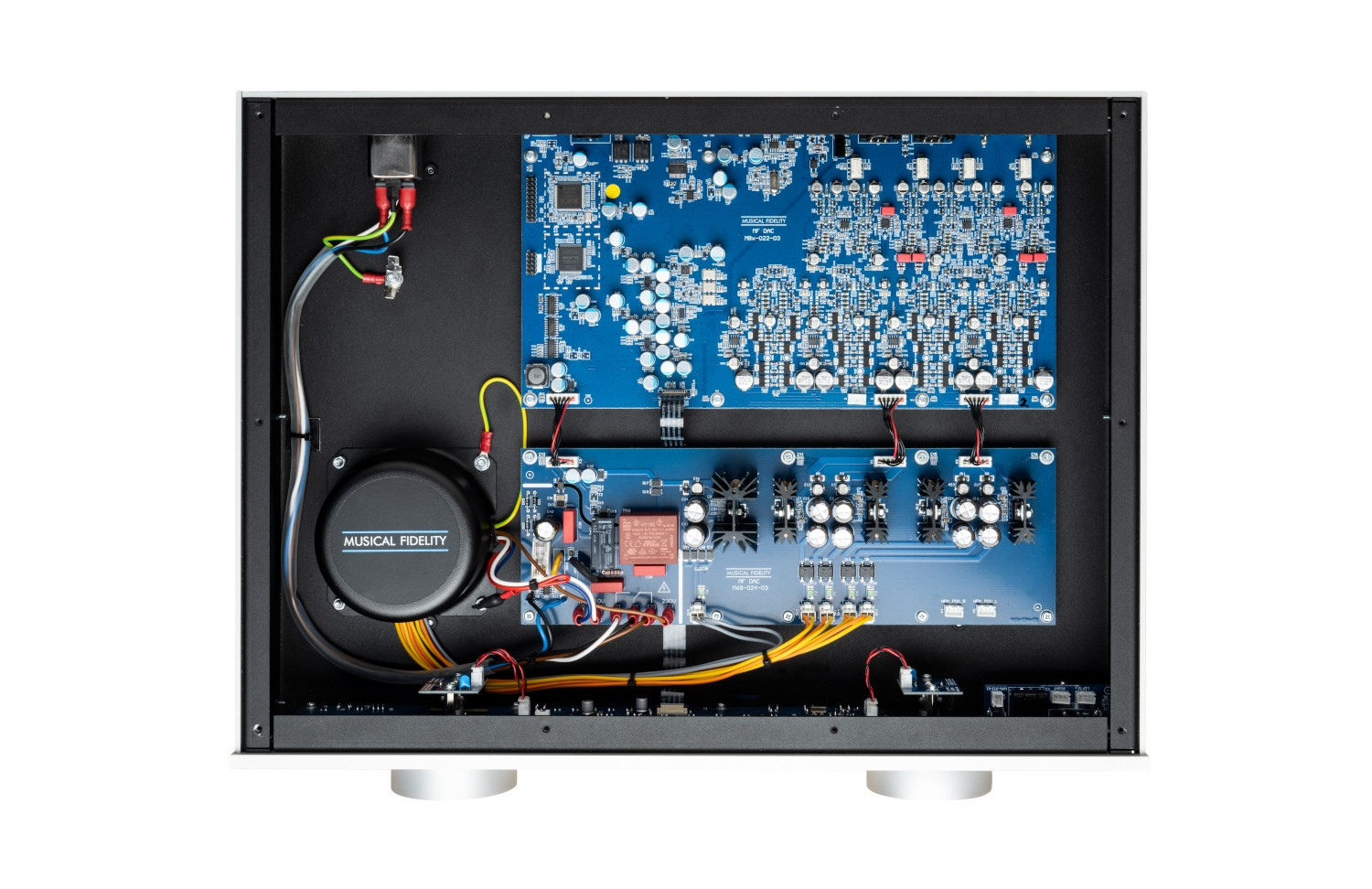

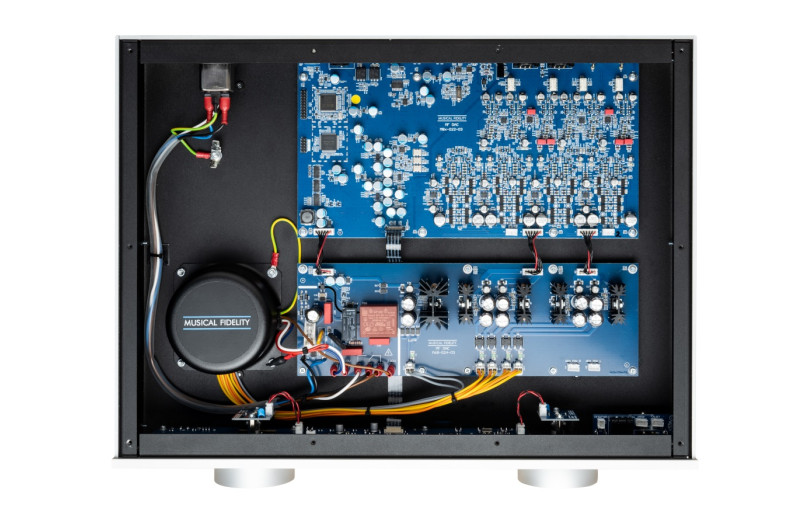

In parallel, the use of an opulent, low-noise encapsulated toroidal transformer ensures a clean and stable power supply, while an exceptionally robust mechanical construction guarantees long-term durability.
To top it all off, the M8x DAC also incorporates a very high-performance, high-power headphone amplifier capable of comfortably attacking even the most demanding models.
The Musical Fidelity is rounded off by a fully balanced analogue output circuitry made entirely of discrete components and generous analogue and digital connectivity.
Features:
- Reference digital audio processor (DAC).
- Dual mono architecture.
- 2 ESS Technology D/A converters with 32-bit technology.
- Supports PCM up to 32-bit/768 kHz, DSD up to DSD512 and MQA.
- Optional resampling and resynchronisation of PCM, DSD and MQA signals.
- 100% balanced analogue circuitry executed with discrete components.
- Dedicated headphone amplifier with balanced architecture.
- Ultra-low noise encapsulated toroidal transformer.

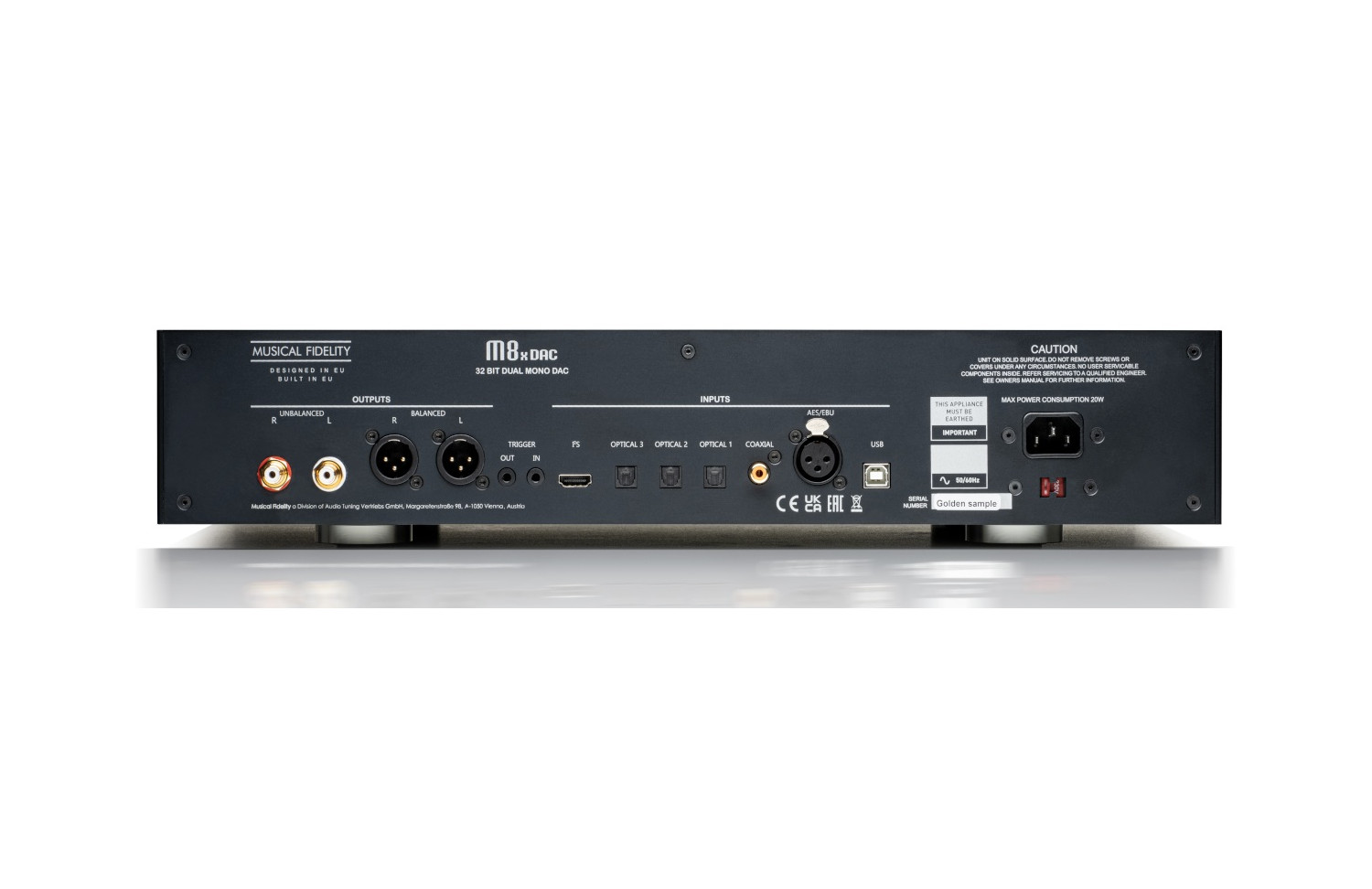

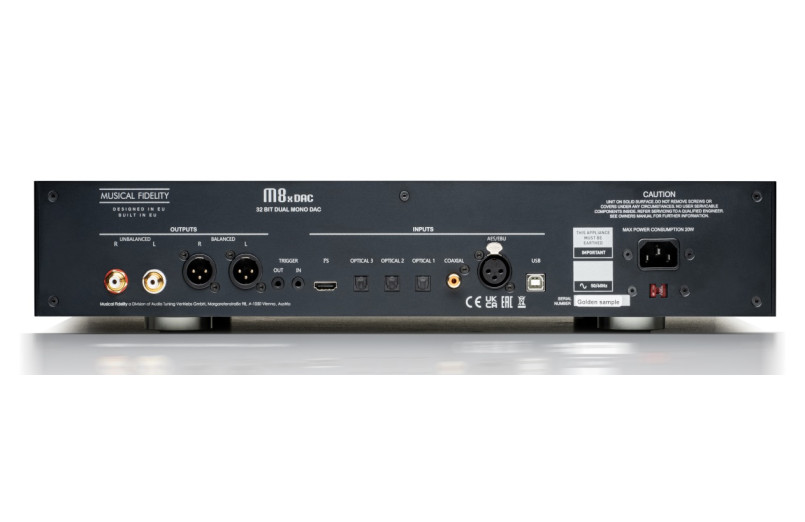

- Balanced and unbalanced analogue outputs.
- Coaxial (1), optical (3), AES/EBU (1), USB (1) and I2S (1) digital inputs.
- Available in black and silver finish.
- Jitter level of less than 100 femtoseconds.
- Frequency response 20-20,000 Hz, +/-0.1 dB.
- Signal to noise ratio greater than 100 dB at 1kHz.
- Channel separation greater than 114 dB at 10 000 Hz.
- Headphone amplifier of 1.5 W per channel at 32 ohms.
- Made in the European Union.
- Dimensions: 483 x 102 x 381 mm (W x H x D).
- Weight: 10.6 kg.
