The Artsound MX-60M is a compact mixer amplifier with integrated source, designed for commercial and industrial applications. Unlike the MX-60, it includes a module with USB, SD, Bluetooth and FM tuner inputs.
This mono amplifier is designed to work with 70V and 100V passive hi-fi and PA speakers, offering three mixable line inputs and a total of up to 60W of power.
It features three microphone inputs (1 XLR and 2 1/4" jacks), two line inputs and a "Phoenix" priority input, which allows music from other inputs to be interrupted to give priority to this signal.

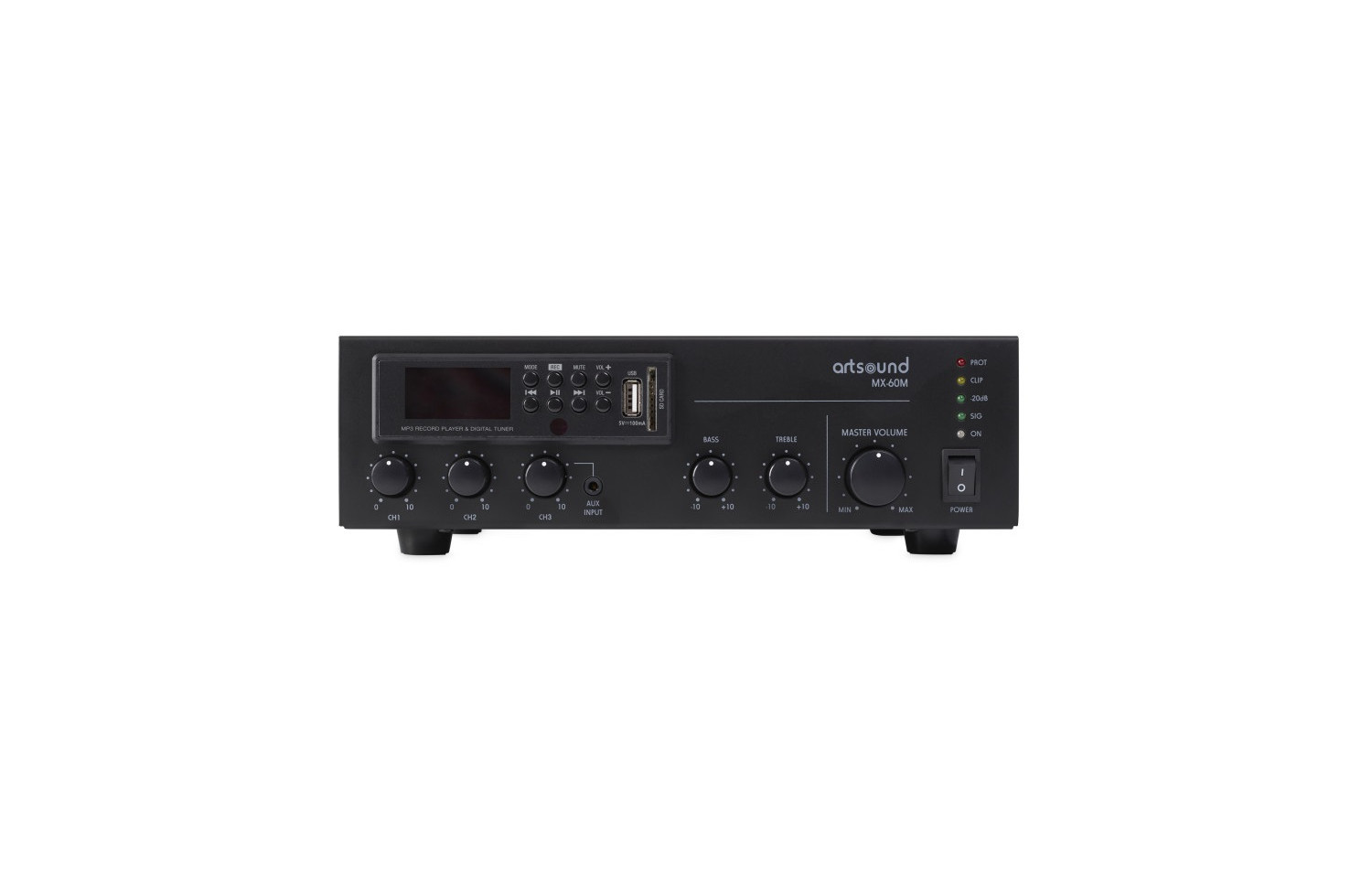

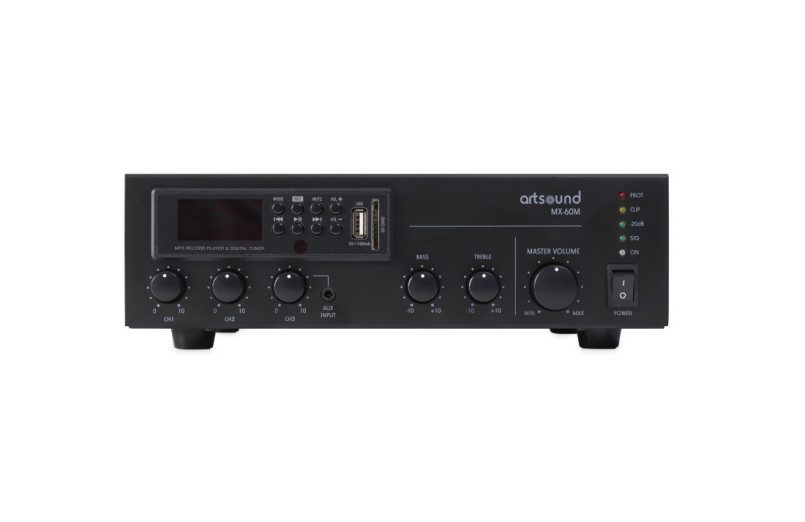

The MX-60M also features a front-panel LCD selector and a preamp system for adjusting the gain of weak signals. In addition, it has tone controls and status LEDs, and enters protection mode if its capacity is exceeded. It can drive 4-ohm and 8-ohm speakers, as well as 70V and 100V lines, although both outputs cannot be used simultaneously.
Features:
- Compact amplifier
- Built-in power supply
- Frequency range: 80 Hz - 18 kHz
- Dimensions: 76 x 270 x 230 mm
- Weight/piece: 3.59 kg
- AUX input: 2 RCA
- 8O RMS output capacity: 60 W
- Power supply: 240 V AC
- Tone control: Yes
- Direct output: 4-8 Ohm / 70V / 100V
- MIC input: 3 (1 XLR / 2 6.3 mm jack)
- Priority levels: 3
- Priority input: 1 (phoenix + contact)
- Built-in source: USB / SD
- Line output: built-in source, channel 2/3
- Zones: 1
