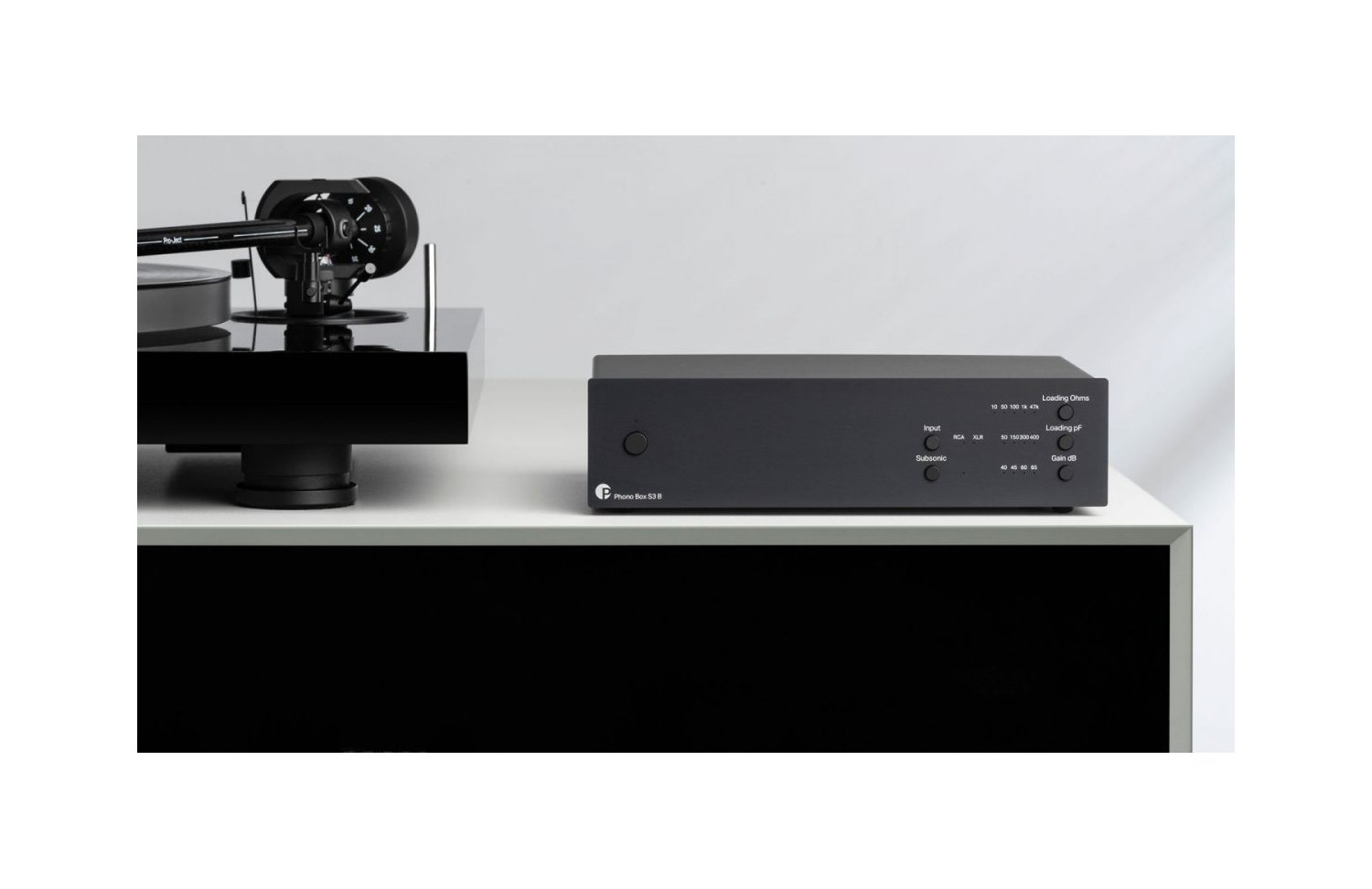

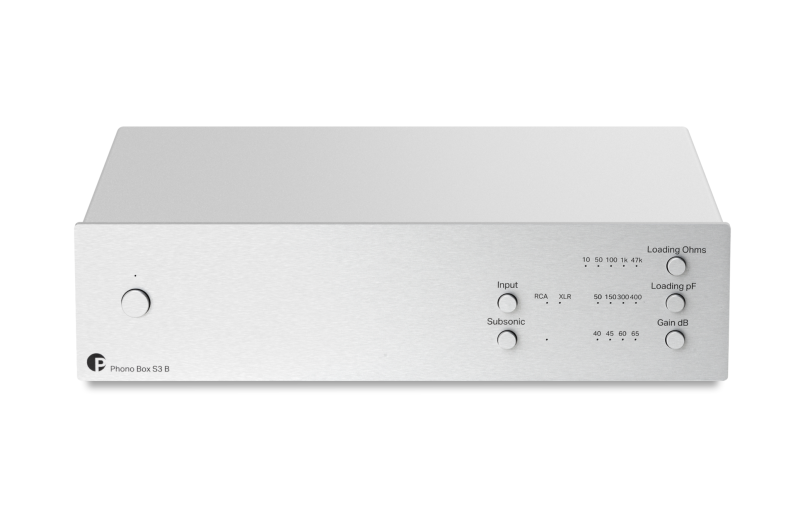

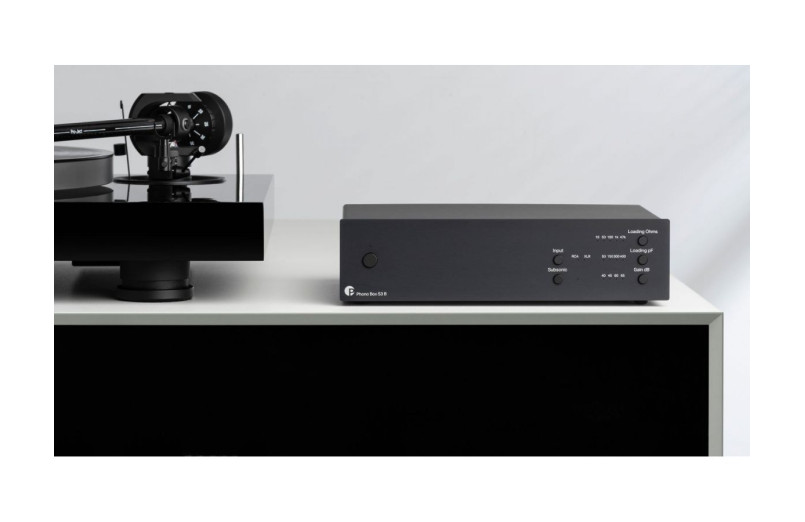

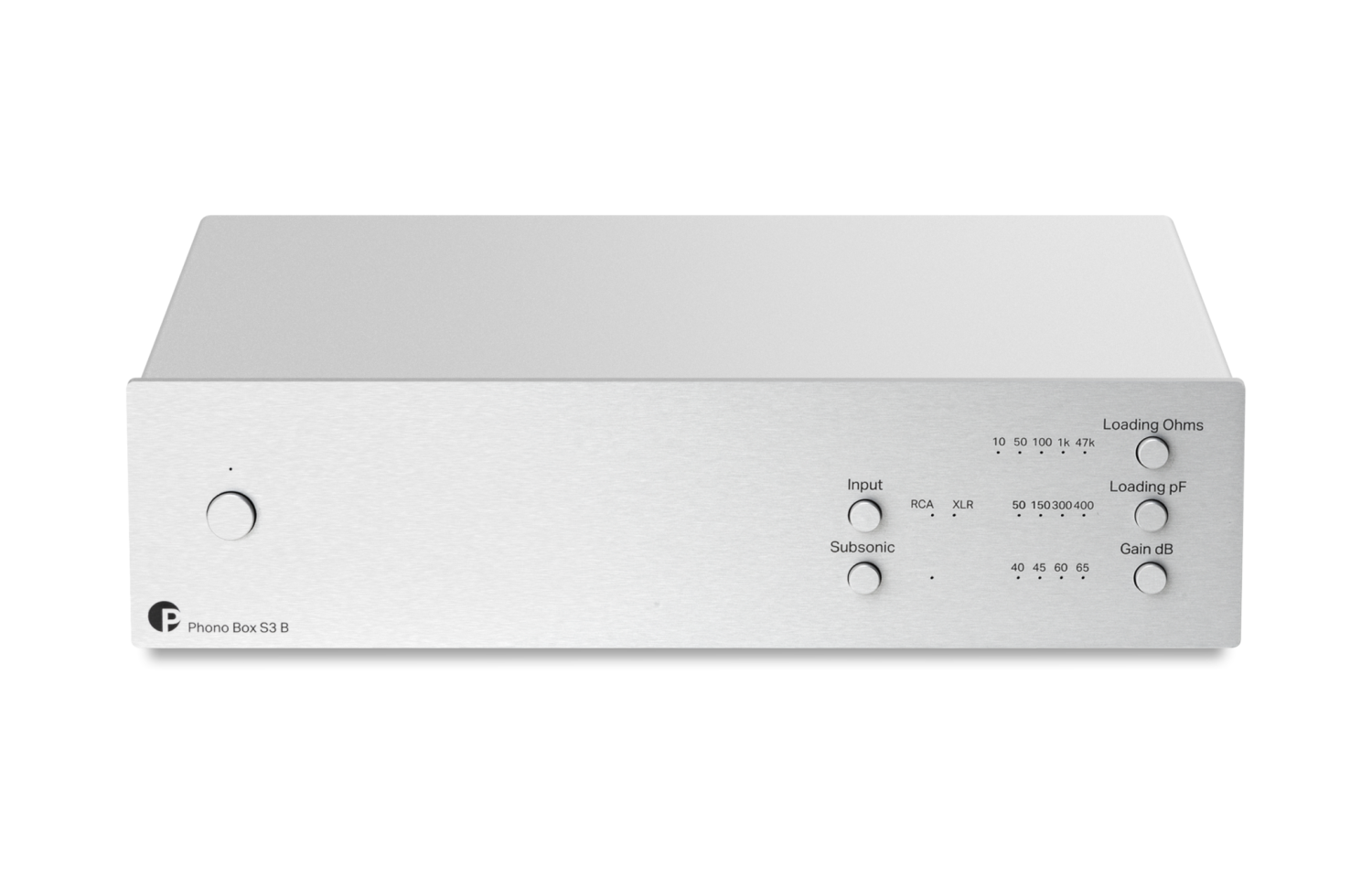

The Phono Box S3 B is a new proposal from Pro-Ject Audio Systems for those who want to optimize the integration of turntables and pickup cartridges for the most competitive price possible. A newly designed steel and aluminum chassis with aluminum buttons forms the starting point for electronics with an unequivocally audiophile soul that dazzles with the refinement of its engineering.

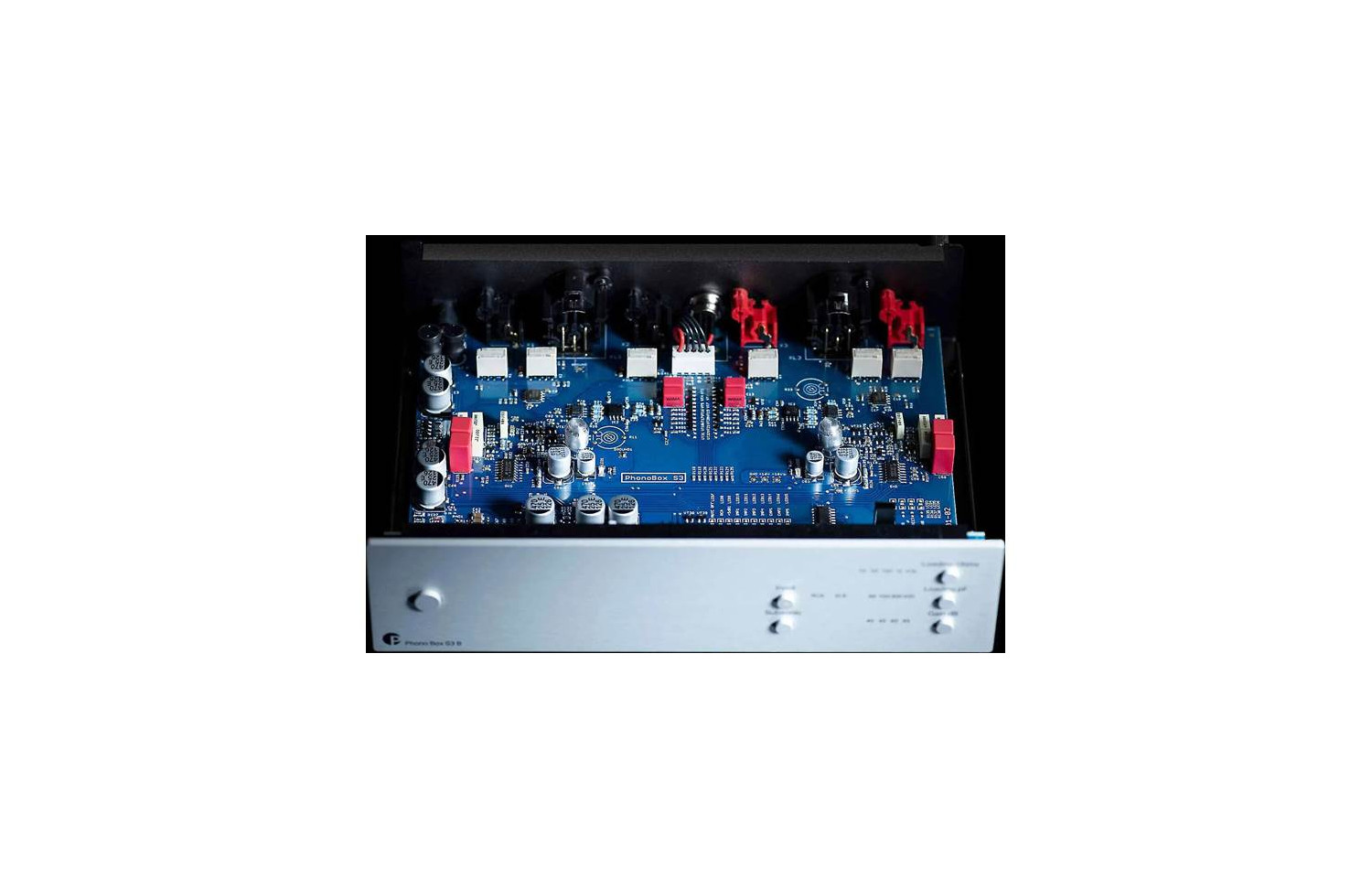

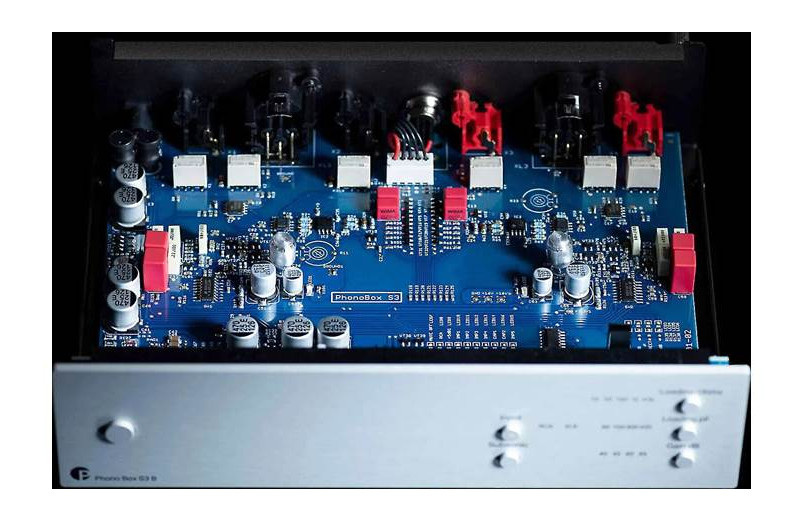

Thus, the Phono Box S3 B combines a double monophonic architecture with a fully balanced gain stage (hence the “B” in its name). The second fundamental feature of the new Pro-Ject phono preamplifier is the exclusive use of discrete components (individual and therefore not integrated into “chips”) in the aforementioned gain stage, in order to obtain a sound that is as natural and dynamic possible.
The third technical singularity of the Phono Box S3 B is found in the RIAA equalization stage, which is semi-passive and in which the balanced (XLR) and unbalanced (RCA) signals coming from the gain stage are treated separately. which means that the user can simultaneously connect two turntables while memorizing the settings of key adaptation parameters.
Characteristics:
- High-performance phono preamp and exceptional quality/price ratio.
- Compatible with MM and MC capsules.
- Completely dual monophonic and balanced circuit topology.
- Balanced gain stage executed with discrete components.
- Semi-passive RIAA equalization section.
- 4 gain settings (40/45/60/65 dB).
- 5 load impedance settings (10, 50, 100, 1,000 and 47,000 ohms).
- 4 input capacitance settings (50, 150, 300 and 400 pF).

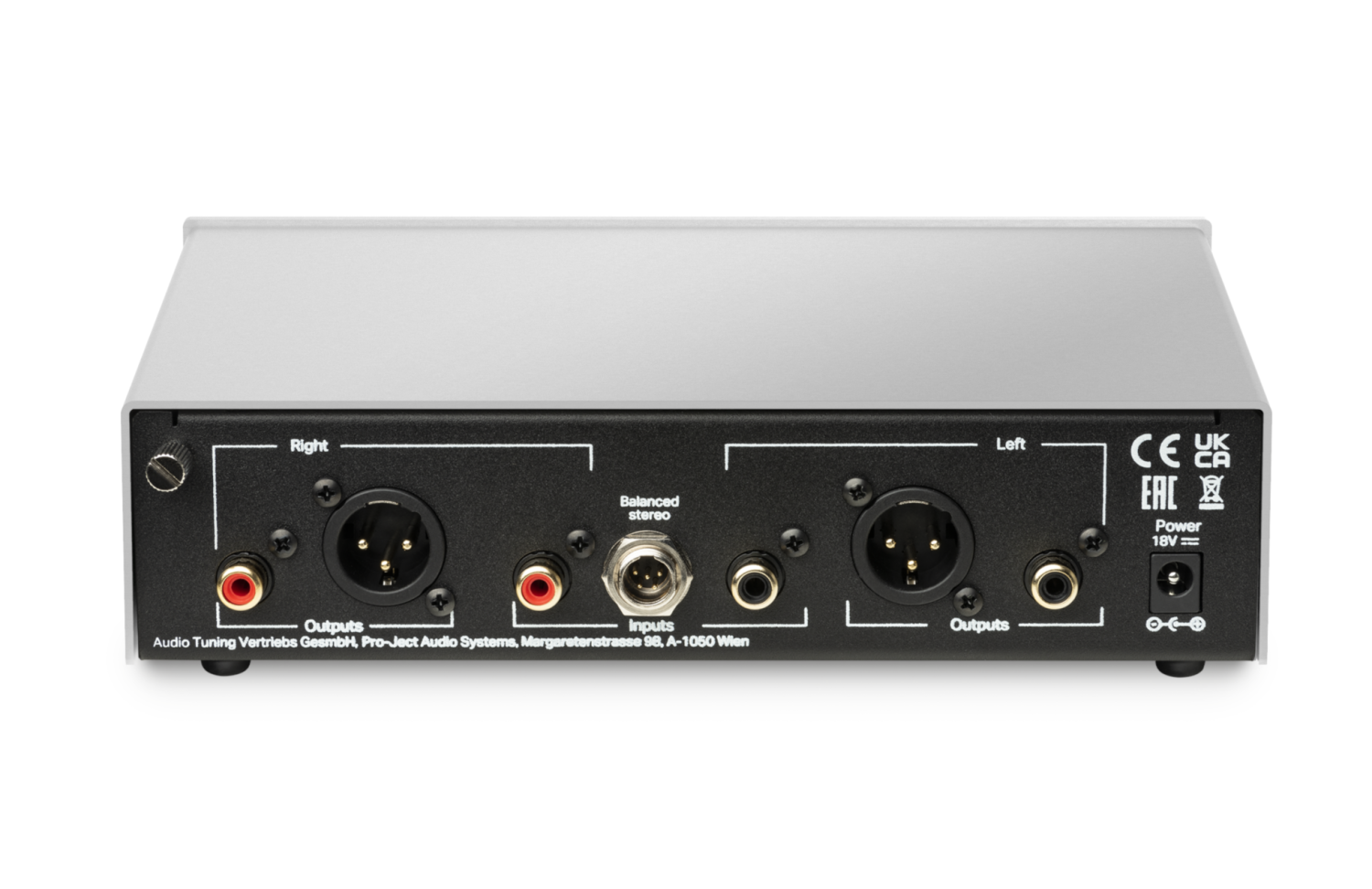

- Balanced (XLR) and unbalanced (RCA) outputs.
- Entirely metal construction.
- External power supply.
- Signal-to-noise ratio of 110 dB with MM capsules and 90 dB with MC capsules.
- Designed and manufactured entirely in Europe.
- Dimensions: 206 x 50 x 153 mm (W x H x D).
- Weight: 0.93 kg (without power supply).
