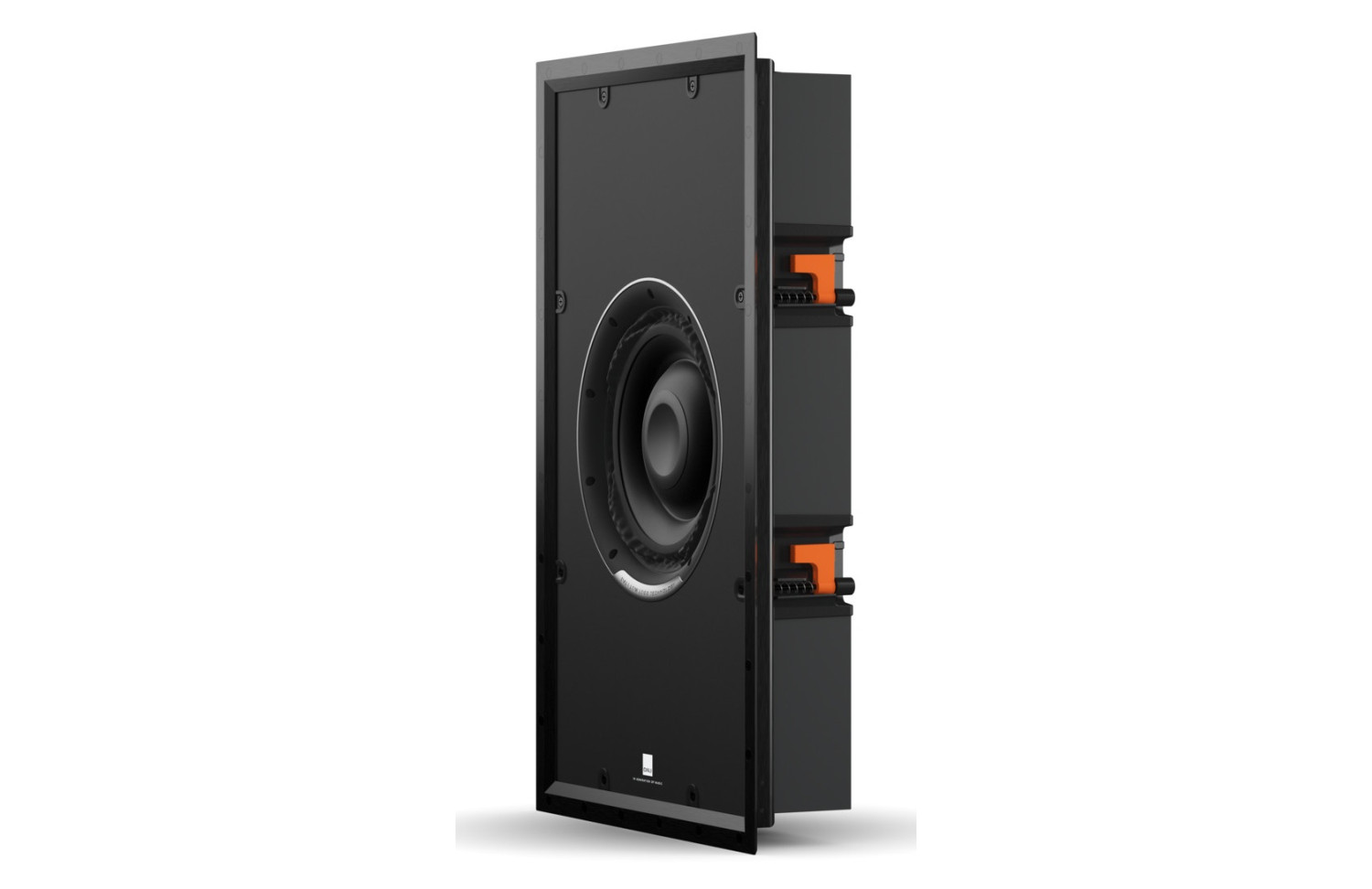

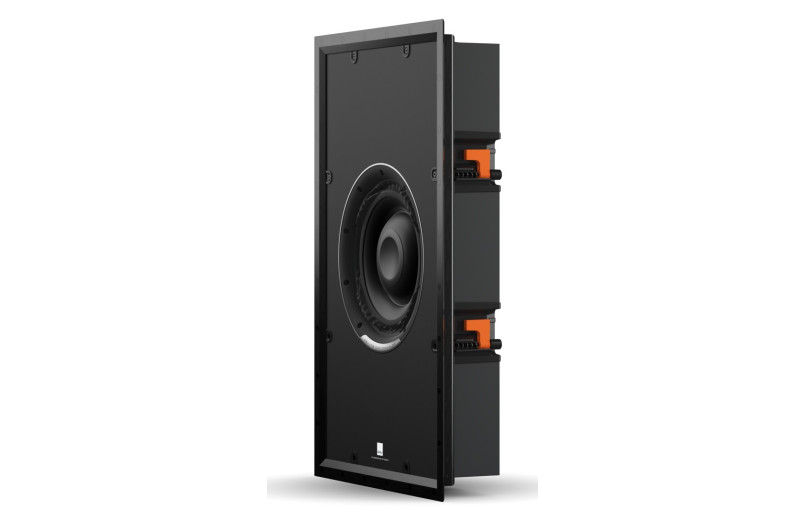

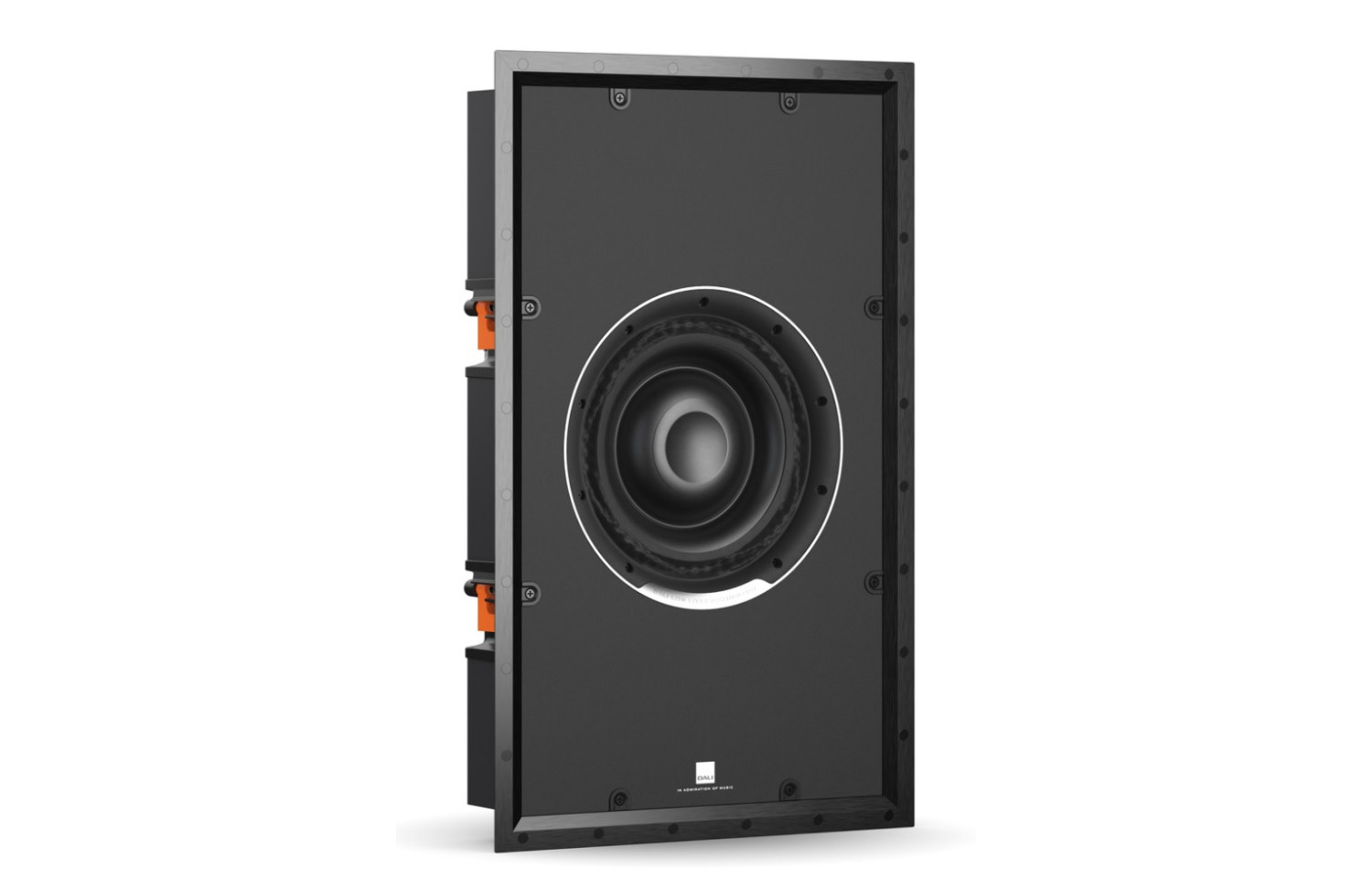

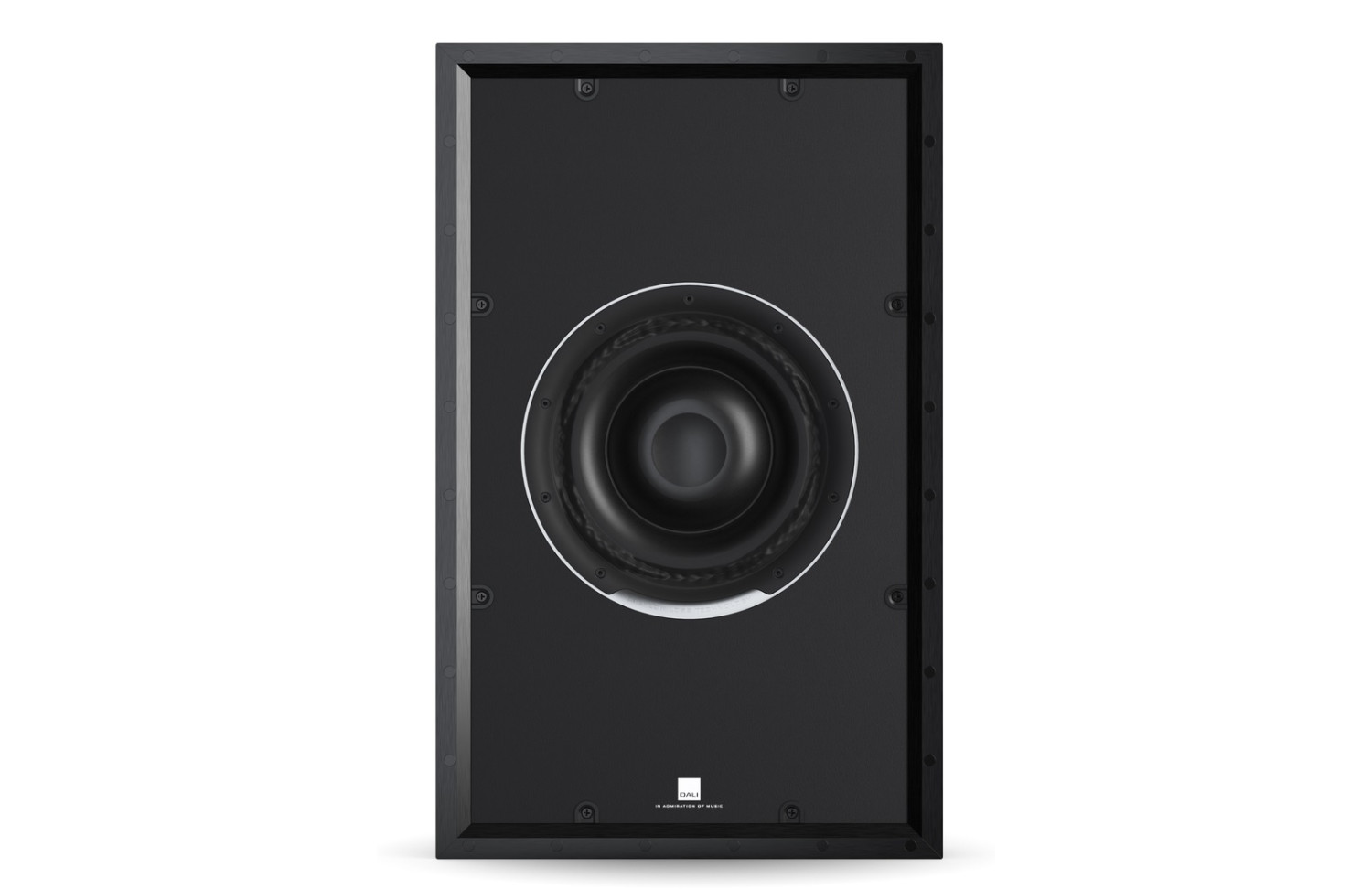

PHANTOM IW SUB S-100 is a 10” in-wall subwoofer, on-wall or for mounting on the ceiling. It features an ultra-thin profile to allow for very discreet installation and the ultimate in versatility. Its rigid construction, high supported power and high volume levels offer exceptional playback of musical and cinematic content.
Discreet installation
With a mounting width of just 102mm, the PHANTOM IW SUB S-100 has the perfect balance between high performance and placement options.
Total versatility
Designed for easy in-wall or on-wall installation. The DALI SUB S-100 can even be hidden from view behind a sofa or living room furniture.

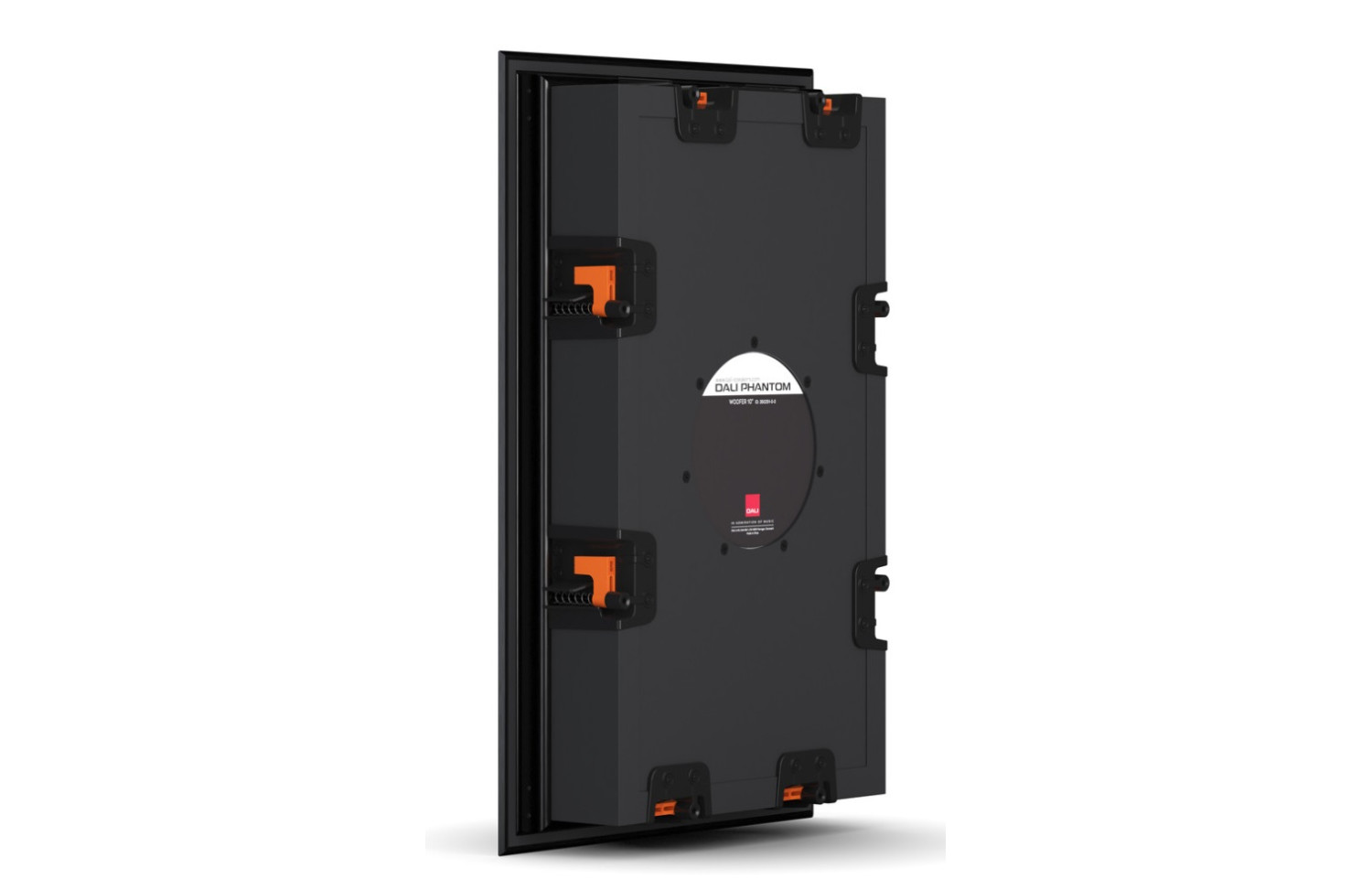

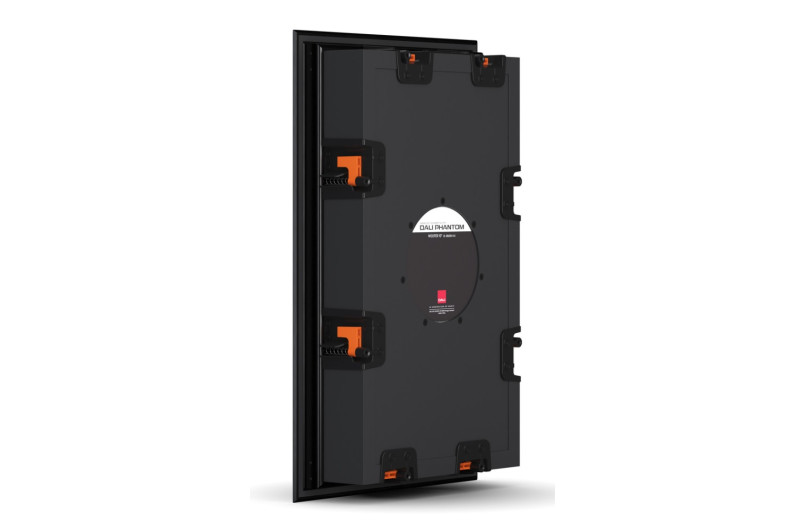

Integrated backbox for easy installation
The fully enclosed casing makes installation very easy, with no need to add a backbox. The speaker is ready to mount right out of the box.
Powerful Home Cinema Playback
The new 10” ultra-thin, long-stroke driver features Constant Surface Surround (CSS) technology, developed by the DALI engineering team in Denmark.
Low-loss surround geometry increases linear exclusion. The SUB S-100 is the first driver with CSS technology. Developed hand in hand with Purifi Audio in Denmark, it enhances the classic surround design with a unique geometry that alters the positive and negative regions, ensuring a continuous radiating surface, regardless of diaphragm position.
The perfect couple
DALI SUB S-100 has been developed to connect exclusively to the PHANTOM CI AMP-2500 DSP DALI amplifier. With 2 x 500W Class D amplification, CI Amp DSP has enough power to drive up to four SUB S-100s. It is a rack-mountable amplifier that also features DSP technology and has been carefully tuned to make the SUB-100 sound perfect.
Characteristics:
- Frequency response [+/- 3] dB [Hz] : 26 - 250
- Sensitivity [2.83V/1m] [dB] : 84
- Maximum SPL [dB] : 110
- Recommended amplifier: DALI PHANTOM AMP-2500 DSP
- Woofer: 1 x 10” long stroke
- Size with Grill [AlxAnxFn] [mm] ]: 657 x 412 x 107
- Cut size [AlxFn] [mm] : 615 x 370
- Mounting depth [mm] : 102
- Grill weight included [kg] : 17.25
